Production Details

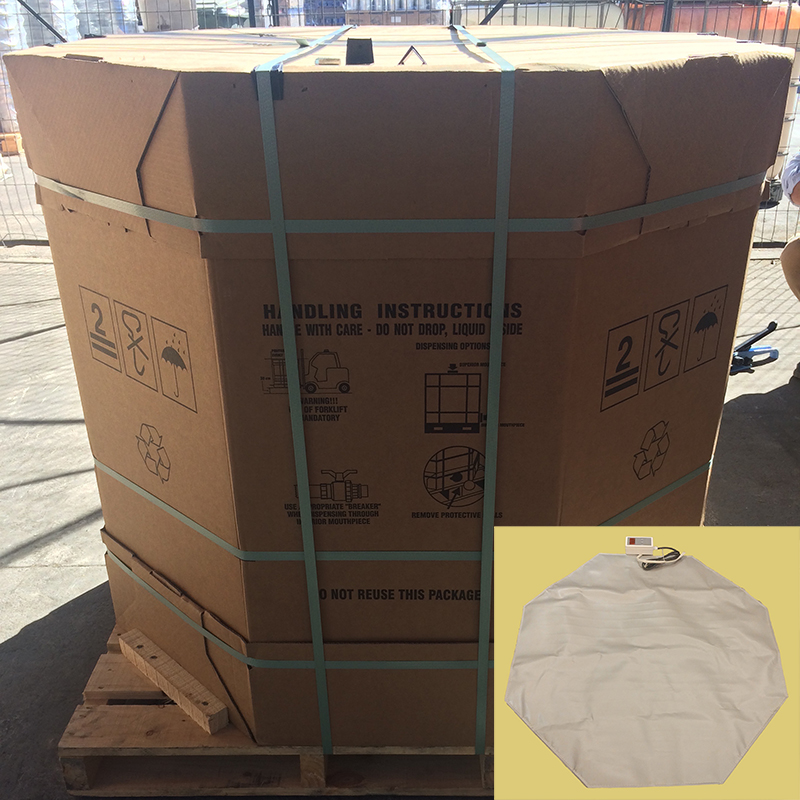

Electrical Heating Pad From Bottom for IBC Barrel

Basic Information

Product NO. JNTH01-HP01
Thermal Insulation Material Spandex Firbre
Heating Wire Multiple
Range of Temperature Control -10 ~ 190 ºC
Precision of Measuring ±1 ºC
Power 800 ~ 1500 W
Package Carton
Origin Shandong, China
HS Code 8516800000

Product Description

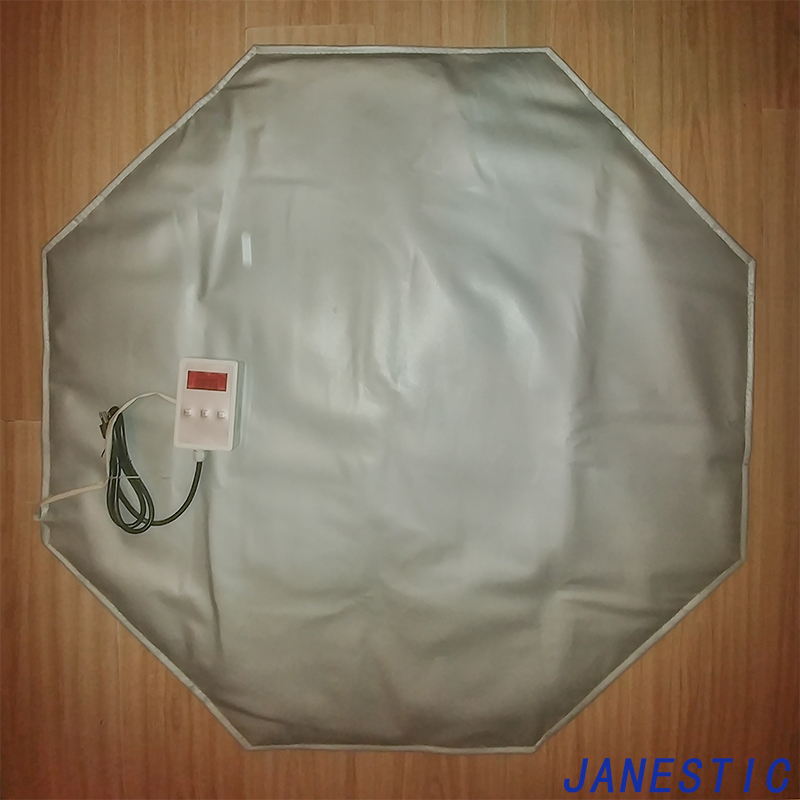

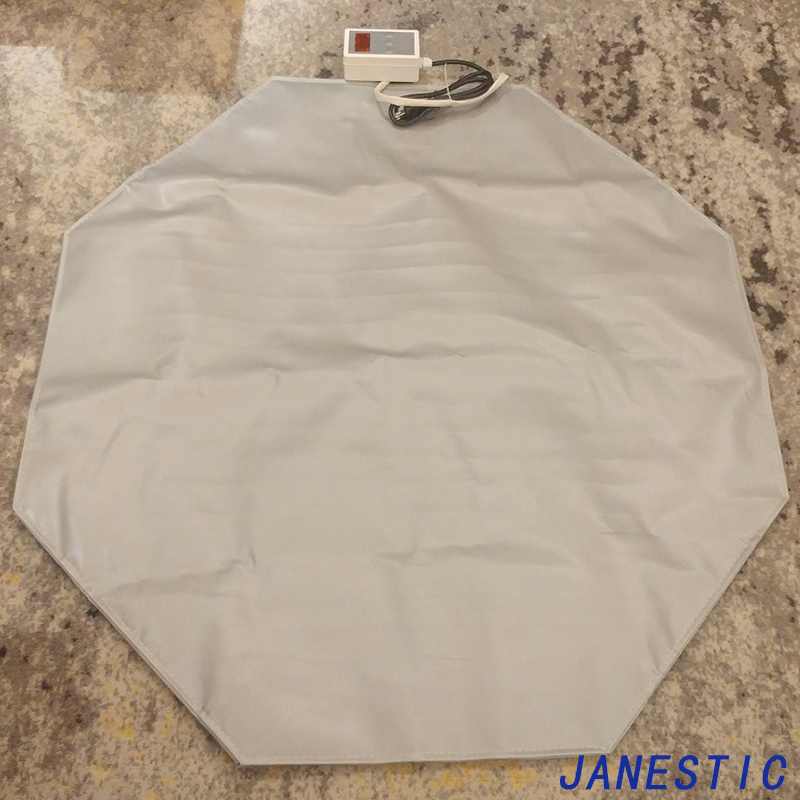

Electrical Heating Pad for IBC Barrel

Technical Parameter

  1. Input voltage 220VAC, max. output power 2KW, power consumption of thermostat: <1.5W;
  2. Temperature control range: -10ºC~190ºC; hysteresis error of temperature control: 1~20ºC;
  3. Measuring range: -10ºC~190ºC; measuring accuracy: ±1ºC;
  4. Setting range of timing on/off: 1~24 hours;
  5. Temperature sensor probe: Spec. of thermistor is 3380 10K 25ºC. (the configuration of probe can be configured by customers based on their options)
  6. Connection of load: interface voltage when output on: AC220V, new national standard socket is output interface.
  7. Operating environment: temperature range: 0~60ºC, humidity <85%, non-corrosiveness and no strong electromagnetic interference circumstance.
  8. Thermal insulation material: carbon fiber.
  9. Fireproof Grade: A grade.

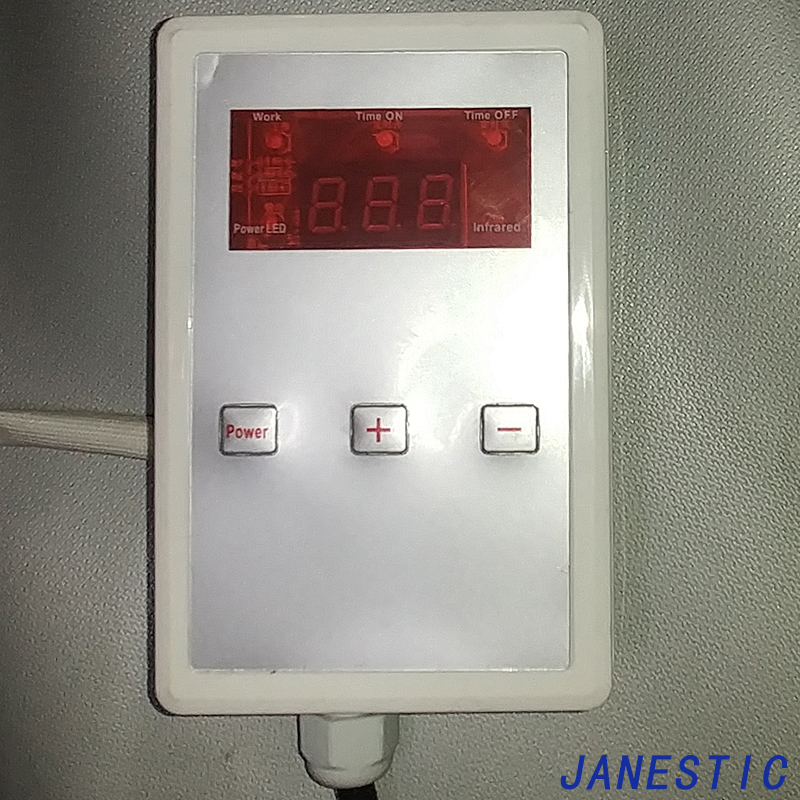

Main Functions

  1. Two temperature control modes including heating/cooling mode can be selected as needed. (factory default of heating mode):
    1. Heating mode operation: output off when detection temperature ≥ temperature control value, output on when detection temperature ≤ temperature control value - hysteresis error of temperature control.
    2. Cooling mode operation: output on when detection temperature ≥ temperature control value, output off when detection temperature ≤ temperature control value - hysteresis error of temperature control.
  2. Timing on/off: It can be set previously for temperature control on or temperature control off.
  3. Display temperature can be calibrated: Users can calibrate thermostat by `themselves if detection temperature is incorrect.
  4. Hysteresis error of temperature control can be set by users: Hysteresis error of temperature control between power on and off can be adjusted by users.
  5. Temperature control value can be set arbitrarily: Setting range -10~110°C (factory default of 40°C)
  6. Temperature probe failure alarm: Buzzer will alarm and El will display on screen when temperature detects short circuit and open circuit.
  7. High temperature alarm: Buzzer will alarm and Hl will display on screen when temperature keeps on rising by 7° after heating mode operation is under output off (alarm temperature can be adjusted).
  8. Low temperature alarm: Buzzer will alarm and L0 will display on screen when temperature keeps on falling by 7° (alarm temperature can be adjusted).
  9. Freeze protection: Under standby of certain mode, in case of detection temperature ≤5°, output on; in case of detection temperature ≥8°, output off; in case of temperature not rising, output will be long-term on.
  10. Permanent memory: Parameters, operation mode and operation state that are set at last will be permanent memory after power off.

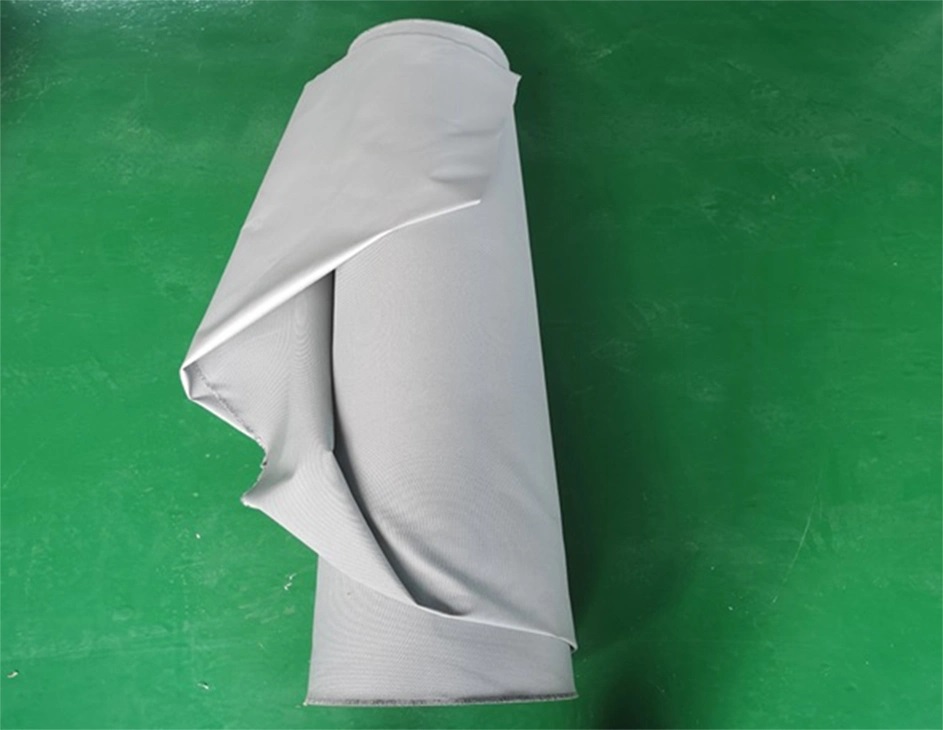

External Material: silicone cloth (for waterproof)

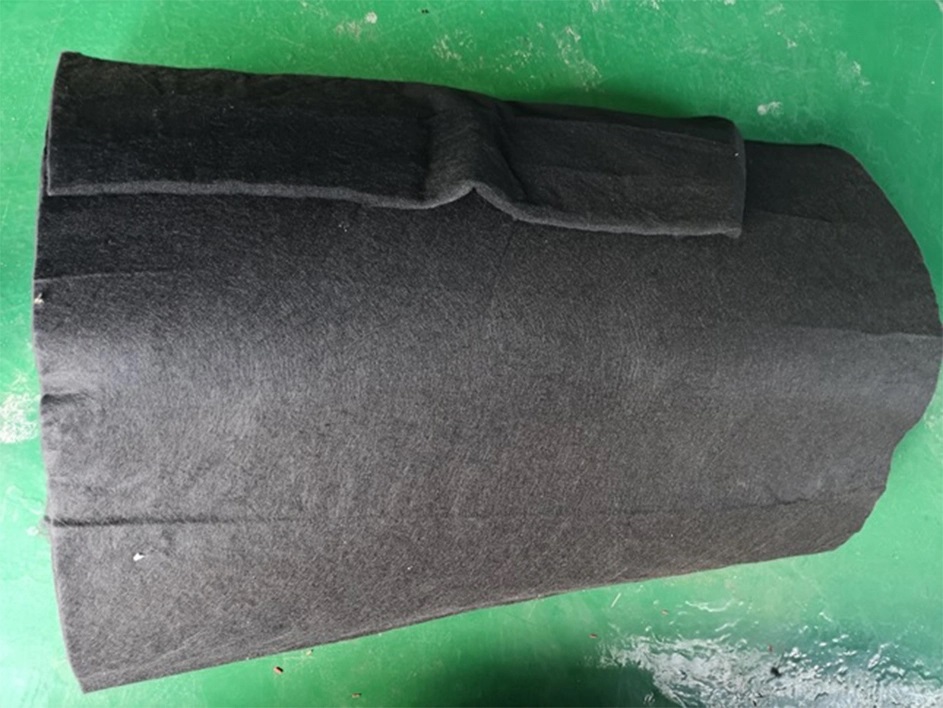

Internal Material: fireproof carbon fiber mat (for heat preservation)

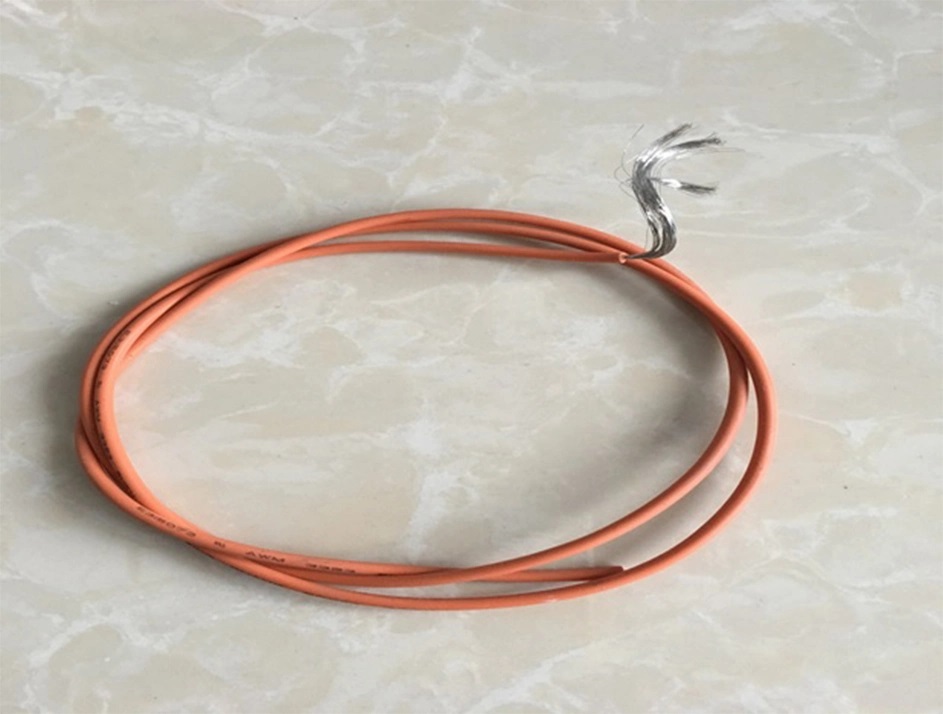

Heating Wires: multiplied nickel-chromium alloy wires
Flexibility
